Application
Product Parameters
|
Power Supply |
12~24VDC |
|
Measuring Range |
-0 ...0.6 ...2.5Mpa |
|
Pressure Type |
Gauge Pressure (GP) |
|
Output Signal Type |
4~20mA，RS485 |
|
Mounting Interface |
M20×1.5，G1/4，G1/2，NPT1/4 |
|
Accuracy Grade |
0.5%FS |
|
Overload Pressure |
150%FS |
|
Temperature Drift |
±0.02%FS/℃ |
|
Temperature Compensation |
-10 ~ 70℃ |
|
Stability Performance |
±0.2% FS/year |
|
Operating Temperature |
-40 ~ 85℃ |
|
Enclosure Protection |
IP65 |

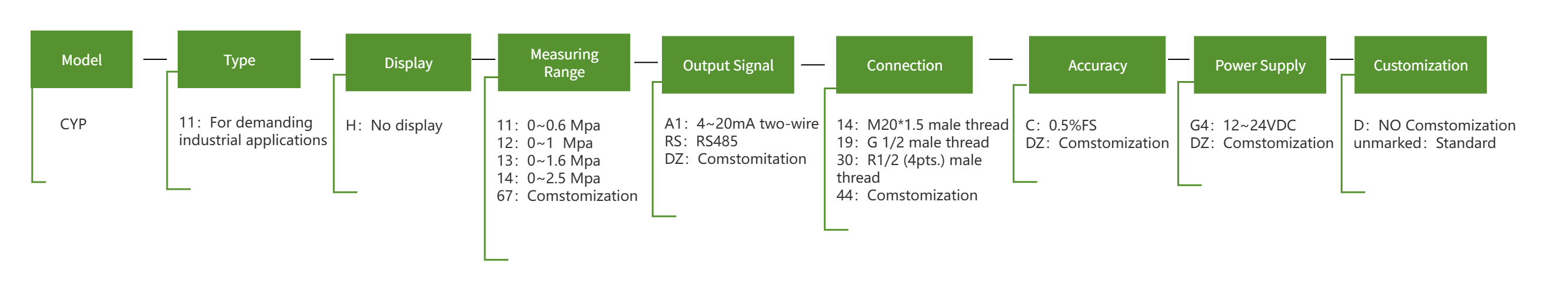

Product Selection
Product Advantages:
